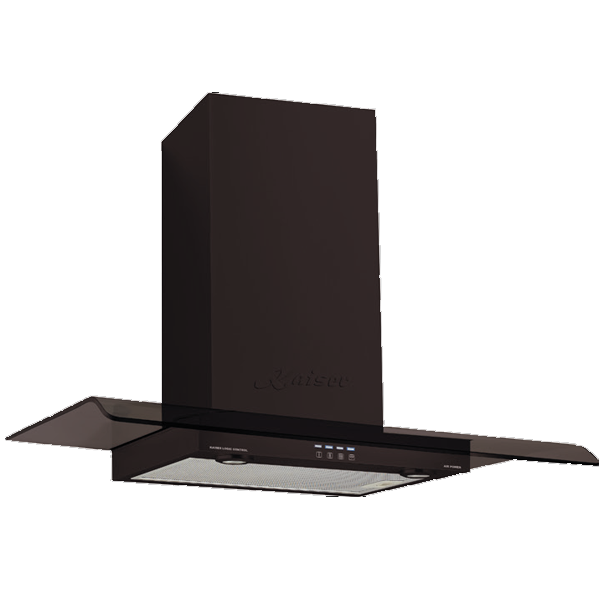

A 6414 S

Design

â–ª Product line

â–ª Chimney hood

â–ª A 6414 N / A 9414 N – Stainless steel

with Anti-Touch effect / smoke colored

glass

â–ª A 6414 S / A 9414 S – Schwarz / smoke

colored glass

Features

â–ª 1 grease filter

â–ª 2 charcoal filters

â–ª Light – Halogen, 2 × 20 W

Equipment

â–ª Pipe adapter 150-120 mm

â–ª Aluminium pipe

Control

â–ª Electronic controlled programmer

Logic control

â–ª Electronic Soft touch / buttons with

lighting

Сomfort

â–ª Lighting, independent of cooker hood

â–ª Low noise

â–ª Dishwasher-suitable grease filters

Technical specifications

â–ª Energy efficiency class D

â–ª Suction power, m³/h 780

â–ª Motors 1

â–ª Speeds 3

â–ª Operation mode Exhaust /

Recirculation

â–ª Output hole size (mm.) 120/ 150

A 6414 ***

â–ª Net weight, kg 17,5

â–ª Gross weight, kg 19,8

A 9414 ***

â–ª Net weight, kg 19,0

â–ª Gross weight, kg 23,2

Dimensions (H × W × D, cm)

A 6414 ***

â–ª Unit dimensions 55,0 × 60,0 × 50,0

â–ª Dimensions in packaging 59,0 × 66,0 × 48,0

A 9414 ***

â–ª Unit dimensions 55,0 × 90,0 × 50,0

â–ª Dimensions in packaging 56,0 × 96,5 × 41,0
